✅ Versatile & Fully Automatic – Our C/Z/U Purlin Roll Forming Machine offers seamless switching between profiles with an intelligent control system, ensuring high efficiency and minimal downtime.
✅ Premium Steel Construction – Engineered with high-strength steel rollers and hardened cutting blades, our machine guarantees durability, precision, and smooth operation for long-term production.
✅ Customizable to Your Needs – Adjustable width, height, and thickness settings make it ideal for industrial warehouses, commercial buildings, and residential structures.
✅ High-Speed & Energy-Efficient – Designed for fast production speeds while maintaining low power consumption, increasing your manufacturing output while saving energy costs.
✅ User-Friendly & Smart Control – Integrated PLC touchscreen system for easy operation, with multilingual support and real-time monitoring.

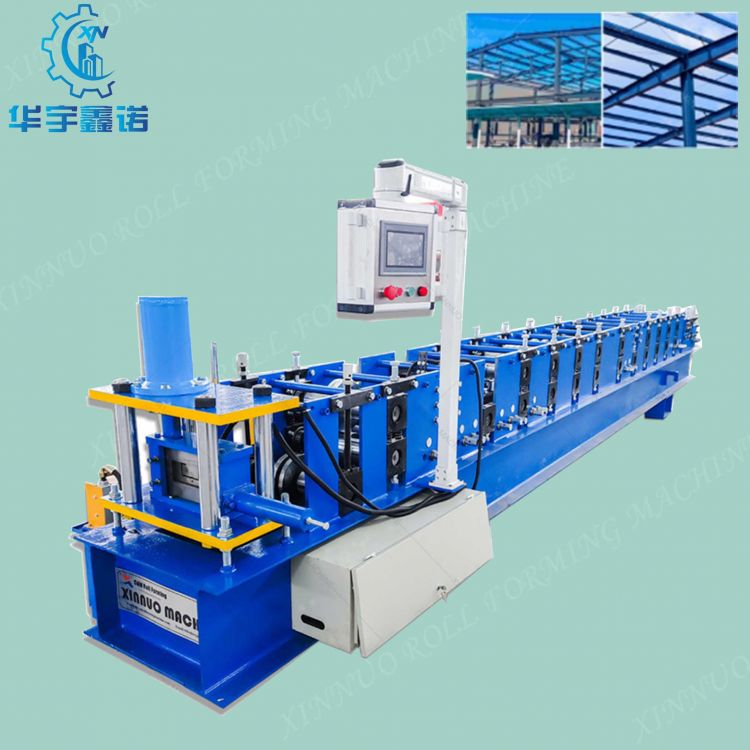

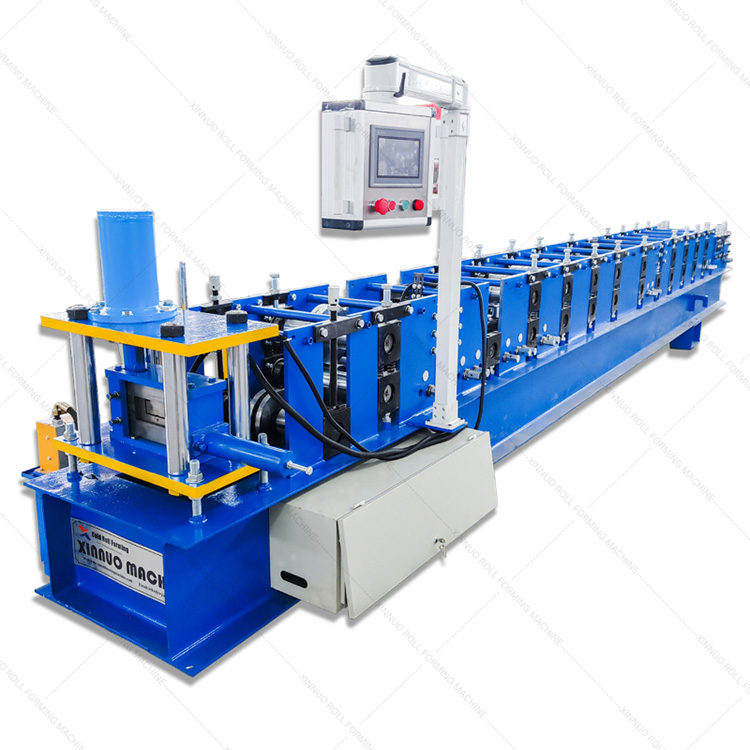

Z PURLIN MACHINE
Overview

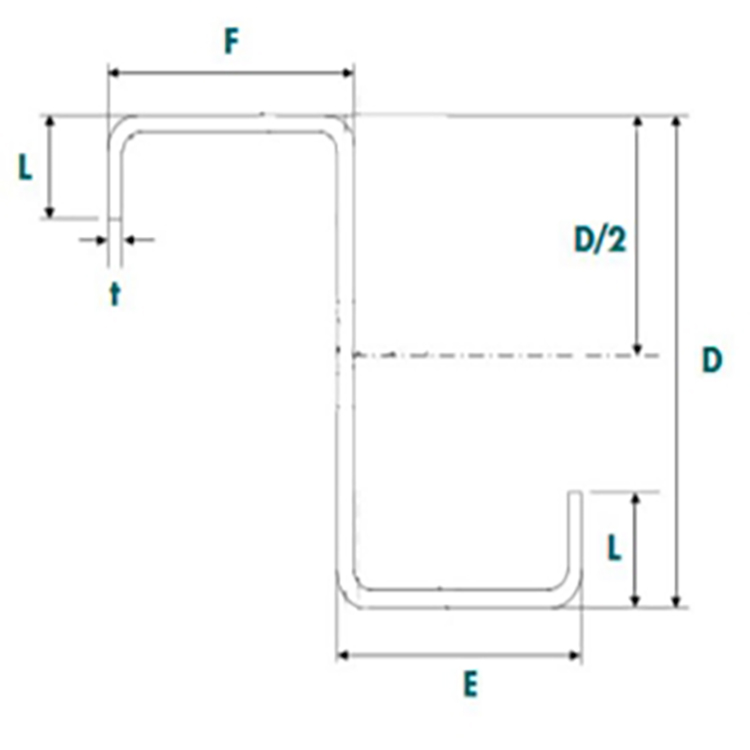

Profile Drawing

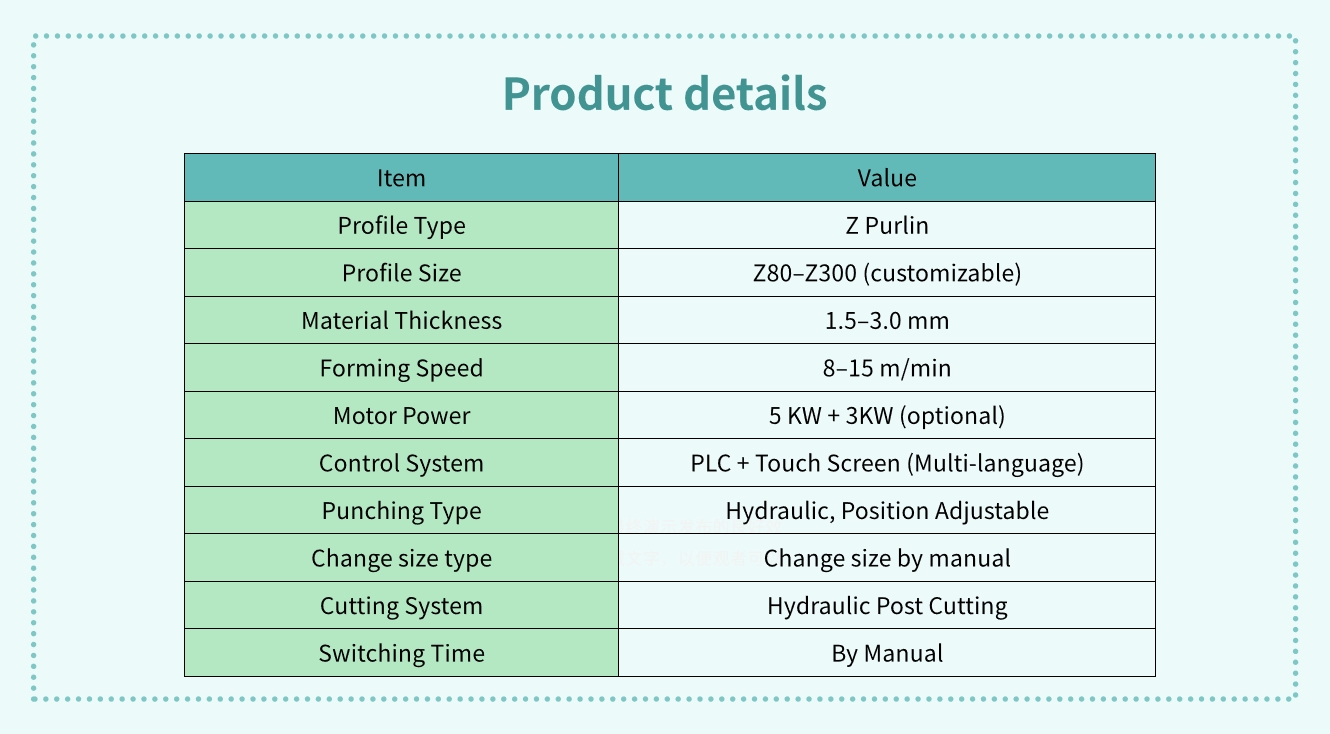

Products
Main Parameters
No. | Item | Parameter |
1 |
Size range |
Width: 80-300mm flange:40-80mm lip :10-20mm Normal Thickness:1.5-3mm Normal Punching hole size :M14 M16 All the size will design as customer requirement. |
2 | Maximum forming speed | 12m/min |
3 | Thickness range of the raw materials | 1.5-3mm |
4 | The material of the roller | GCR15 |
5 | Rollers for forming | 16 rows |
6 | Under frame | 350mm H Steel |
7 | Roller material | 45# steel |
8 | Shaft diameter | 75mm |
9 | Chain size | 1.5 inch |
10 | Change size type | Change size by manual |
11 | Driving style | 11+5.5kw motor |
12 | Voltage | 380V 50Hz 3phases(changeable as needs) |
13 | Cutter type | Non-tracking hydraulic cutting |
14 | Electrical brand | International well-known brand |
15 | Certificate | CE/ISO |
